Add TRS Midi Out to the Korg Volca Keys

This is going to be a shorter post than usual, since this was actually a pretty straightforward modification.

I wanted to add a MIDI out port to my Korg Volca keys. People have done it before, and there are plenty of posts around the internet detailing the process. But one thing they didn't detail was how to add a more Volca-friendly 3.5mm TRS jack to handle the MIDI.

One of the nice things about the Volca series is how consistently sized they are. I didn't want anything sticking out or crowding the controls. Attaching a raised, 5-pin MIDI jack to the side was out of the question. I still wanted it to fit in my Volca rack with the others, or even in the Sterilite pencil box I use to protect it when I bomb around (seriously, it was 50 cents at a garage sale and might as well have been made for a Volca).

So I wanted to use a regular, 3.5mm stereo jack for MIDI, one that would sit nicely with the rest of the jacks on the face of the Volca, and one that used the "standard" (there is no standard) cable style instead of the Korg-only style. Even though the Volca is a Korg product, I'm hoping I can source any future cables or adapters a bit easier if they're not specialised.

Here's the result:
The trick was getting the pins to match up so my generic 5-pin adapter would actually transmit data. I used the pinout detailed in the post I linked to above, and then gave it my best guess. There was a bit of re-soldering, but now we can all learn from my trial-and-error.

First, I cut three wires a little long, then wrapped them around the circuit board to where the jack would be mounted on the front panel. I cut them shorter, leaving a little extra just in case. Then I soldered them to the pads Korg thoughtfully left. You can find them right next to the Molex plug that connects both boards.
Then I soldered each wire to its proper pin on the TRS jack I was using. In case this is your first outing, TRS stands for Tip, Ring, Sleeve, describing the poles on a typical stereo plug. You really only need three poles for your 5-pin MIDI, so it's okay.

I ended up using the open jack in the photo because a) I had them lying around from another project and b) it was a bit shallower than the full-case version, giving me about 2mm of clearance once the Volca was reassembled (there isn't much space in these things at all).

Here's a crude photo indicating which pads connect to which poles:
If you want to use a Korg-specific 5-pin cable or adapter, just swap the TX and VD wires.

The tricky part is drilling through the case of the Volca. I ended up drilling a pilot with a smaller bit, just to make sure everything was lined up properly, stepping up the sizes bit by bit (literally) until I had a hole large enough for the threaded part of the TRS jack. If you try drilling right away with the largest bit you need, you run the risk of catching it on the plastic or metal and messing up your nicely placed drill hole.

The issue I then ran into was that the jack wasn't long enough to reach through the Volca's case, which was a thicker layer of plastic and the slightly thinner metal faceplate. If you run into this issue, remove the metal faceplate (be careful, since the hex screws are held in place with small black nuts that will go away quickly if you don't hold onto them).

With the faceplate removed, widen the hole in the plastic until you can fit the body of the TRS jack through. Sorry, I didn't take photos of this part, but you want the main body of the jack to fit through the plastic and mount only to the metal faceplate, which is rigid enough to keep it pretty solid.

Mount the jack in place and reassemble everything, making sure none of your wires are pinched. Remember to plug the Molex back in.

Then plug in your adapter and use your Volca Keys as an on-the-go MIDI keyboard for another synth!
It's especially nice to have it hooked up to a Monotribe (with its own MIDI modification) so you can play actual notes instead of relying on the ribbon keyboard.

03 December 2018

Modify a MicroKorg into a desktop synth

I bought a MicroKorg off eBay, and got it cheap because 10 of the keys didn't work. It's always a gamble with "as-is" tech that's sold for parts, and this time, I lost. I was hoping it was just dirty contacts, since the MK looked kind of beat up. I figured that since it worked otherwise, there weren't any bigger problems than the contacts, and I could always use a MIDI keyboard if I had to.

When I opened it up and took a look at the keybed, I found that an old liquid spill had eaten away at the traces. There was some bubbling under the surface, and tiny bits of the copper traces had long ago flaked off. I did attempt to clean the board and re-connect the traces with conductive paint (and failing that, solder) but it wasn't meant to be.

Whatever it was, it was still kind of gummy. I think it was beer.
Here's a closeup of the broken traces. I could see the spaces when I held it up to the light.
I decided it wasn't the end of the world if I chopped off the mini keys and turned the MK into a desktop unit. Since that's probably why you're here, I'll get right to the steps.

Here's what you'll need for this project:
  • A radial arm saw or something that will cut straight. Really.
  • An electric sander or sanding block for shaping what you don't cut straight
  • A drill, with appropriately-sized drill bits for your screws
  • Some scrap wood, about 1cm (1/4") thick
  • Wood moulding or something for the front panel
  • 12 small 1mm thick washers--I used some from a "pop-rivet" kit
  • Various wood screws--at least four, two shorter screws and two long enough to get through your front panel
  • Wood stain if you want to do that
  • Maybe four new rubber feet, since you'll lose the front feet
  • Probably your MicroKorg, otherwise why bother

Step 1: Gut it.

Seriously. Unscrew and remove the wood cheeks. Take the base off, disconnect the two molex plugs that connect the Pitch/Mod wheels and keybed to the MK proper, and take the main board out of the case. We'll be cutting the plastic case, so we don't want random bits all over the circuits. There are plenty of disassembly videos and walkthroughs online, so have at it.

You don't have to remove the metal panel with all the knob labels, so there's a small comfort.

Step 2: Measure twice, cut once.

You only have one case to work with, here, so be careful. Looking at the top of the case, there is a lip across the front above where the keys were. I used that as a guide, marking off a straight line across the left side where the Pitch/Mod wheels were, and the right side, where there's a slim part that the wood cheek is screwed to (don't cut the wood cheeks yet, remove them!).

See how the lip comes down behind the keys? We want to keep that. Also, this MK is fully assembled. Don't be that guy.
The cheeks are something I'll address later--you'll have to trim them down, just not yet.

I used a radial arm saw to cut from each side because for some reason I actually have one. I was a little generous on my cut on the left side (you can see the extra bump in the photo below), and needed to sand down some extra plastic. When I was done, the top lip stretched from side to side. That's going to come in handy later.

You may have noticed I didn't remove the MK's innards. Be smarter than me.
The base is the same thing. I foolishly tried to score it with a razor, but my cut went crooked. I'd recommend that if you can saw it along a straight guide, do that.

Step 3: Make the front panel.

I used a piece of oak moulding from a hardware store for this. It's a little over 1cm thick and already bevelled. I measured across the case to make sure that when I cut it, the front panel would be flush with the left and right edges.

Once it was cut, I had to trim off another 8mm or so from the bottom, leaving about 1-2mm sticking up (and down) past the plastic case, like the wood cheeks do. I sanded it smooth, since the plan was to stain it in an attempt to match the original wood cheeks (I was marginally successful using a cherrywood stain, though I think Korg were going for walnut originally).

You can make it whatever height you like, of course.

Step 4: Fit it all together.

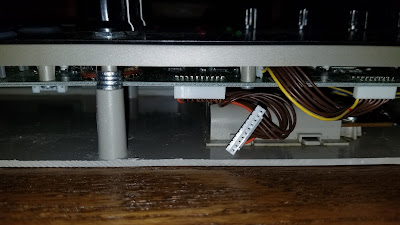

Without the keybed in place, the plastic case has nothing in front to keep its shape. If you tighten the four front screws, the top cover will collapse inward. To counter that, I used four small washers stacked together to make a spacer for each of the screw posts in the front. Once I had that figured out, I reassembled the MicroKorg.

You can see the washers I used to keep the top from bowing in, as well as the unused Molex connectors for the Pitch/Mod wheels and the keyboard. Those you can just tuck into the case.
Here's the full length. I've already cut the wood cheeks, but I cut them for a thicker front panel that I ended up hating.
An article I saw elsewhere said to drill holes into the screw posts and use those to mount the front panel. I didn't want to weaken what's already a rather flimsy plastic case (and also aim so precisely), so my solution was to cut three wood pieces from 1cm (1/4") thick scrap wood to use as mounting blocks.
Literally one screw holding it at the bottom.
They're 3-4 cm wide, and tall enough to span from the base to the top when wedged inside. I had to cut a notch into the top of each one to make room for the mainboard--it comes very close to the front of the MK. The front panel will actually screw into the thicker part of the wood spacer.

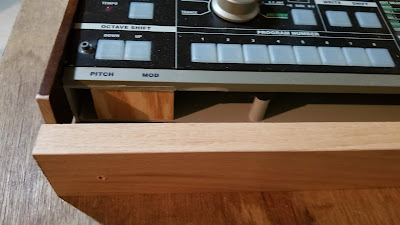

Here's one of the wood spacers in place (the notch is on the other side at the top, against the mainboard). Notice how the spacer is only screwed into the bottom panel--the top is held in place by the plastic lip.
Here's the spacer with my original, too-thick front panel in front of it, hole drilled and ready to go.
I used a single screw to screw each wood piece in place from the bottom of the MK, trying to keep the wood 1-2mm in from the front to account for the overhanging lip on the top panel. That didn't work too well, but it's all inside, so whatever.

I marked the front panel about 3cm in from each side, trying to keep them centered vertically, and drilled some small screw holes. To countersink the screw holes, I used a larger drill bit, a little thicker than the diameter of my screw heads. Then I attached the front.

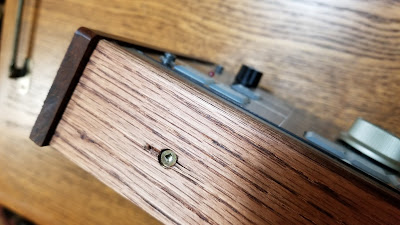

I took this photo after it was all stained and reassembled, but you can see the inset screw.
The screw at the bottom of each wood spacer keeps it in place at the bottom, and the lip on the top panel of the MK does the same for the top, pulling the front panel in without having to drill anything into the top panel. It's all sturdy enough to give you something solid to mount the front panel. With just two screws holding in place, I can carry the MK around by the front panel.

I reattached the cheeks and marked off where to cut so they stuck out about 2mm in the front (you can see that in the photo above). I then taped them back-to-back and sawed them off, using an electric sander to round off the top front corners. Then I measured about 2cm from the bottom and 2.5cm from the front, and drilled new mounting holes, using the larger-drill-bit technique to sink them. That way I could use the original screws.

I screwed the back part of each cheek in place and used double-sided tape to keep the front from moving once it was lined up, then drilled through my pilot hole into the plastic case. Using the original mounting screws (you'll have a couple longer screws left over from pulling the keyboard if you want to use those), I attached the front of each cheek.

The original hole, upper left, and mine, lower right. I didn't want to drill into my front panel for I don't know why.
That's it. Most of this is done to your taste, so if you want to use something else for a front panel or replace the original cheeks or add a PEZ dispenser, that's yours to decide. I think the only thing I really have to add to the larger "MicroKorg mods" conversation is my solution for mounting the front panel as invisibly as possible, and maybe warn you about the case flexing without spacers.

I did have a third wood spacer in the center, but screwing into it would put the front mounting screw off center (there's a screw post just to the right of center, so it would be a tight fit). Luckily, the two screws seem to hold the front panel on tightly enough that I don't have to offend my aesthetic by having a single, off-center screw in the front.

Ready to rock.
I'm sorry I didn't take more photos, but have fun modifying your MicroKorg!

25 January 2017

Building the PiCart RetroPie housing

I saw Zach's writeup on his Pi Cart RetroPie build, and just had to try it. Definitely follow his instructions--they're really easy, and he covers a lot of the potential pitfalls. This post doesn't cover anything new, I just figured I'd document my foray into what it was like to put one together with stuff I had on hand. The second hardest part of this project was getting my hands on the Pi Zero, since Adafruit has them in and out of stock at random. The hardest part was winding all the cables inside the cart to make everything fit.

Here's the stuff I collected for this project:

1 16GB Sandisk MicroSD card (Class 10; speed is important)
1 Micro USB to USB-A adapter (the super small kind)
1 male to female Micro USB adapter
1 4-port USB hub (Link is to the one Zach used)
1 Nintendo cartridge of your choice
1 USB Wi-Fi adapter (optional)
1 USB Drive for ROM transfer

1 3.8mm Security bit
1 Box cutter with new blade
Hot glue gun
Lots of patience

As usual, click on the photos to make 'em bigger if you want to.

Zach's instructions use an Amazon Basics 4-port USB hub, which is only about $6. But I have USB hubs lying around, so to keep costs down, I used one that had two ports on one side and two ports on the opposite side. This way I could plug the WiFi dongle in at the back and add a bluetooth dongle later if I wanted. Power usage is a concern, though, so I probably won't. All you really need is two accessible ports for two controllers, and you can always unplug a controller to update ROMs via USB drive.

Before you start, maybe test the Pi to make sure it works. I've never had a problem with any Raspberry Pi boards, but you never know. Download the RetroPie image (you want the Raspberry Pi 0/1 version for the Pi Zero) and follow the instructions on the RetroPie page for installation. Plug the card in and boot the Pi, ideally with a controller attached. If everything works, assemble your PiCart!

I got everything together and opened up the cart using the security bit. There are a few free alternatives online for opening the cart, but trust me, buying the security bit or screwdriver is worth it.

There isn't a whole lot of room inside an NES cart, even though the thing is mostly filled with air. I pulled out the original game board and marveled at how big it was compared to the Pi Zero.


The Pi Zero needs to be held to be believed. It's about the size of half a graham cracker square.

Or about a fifth of a dollar bill.

I laid down a towel so the tiny parts wouldn't bounce away too easily, then got all the pieces out to assemble. The cables were all stiff and new (especially the HDMI adapter), so I figured I was in for a challenge.

The new guts.

The USB adapter is tiny...

...but it works.

I started by following Zach's instructions, and kept modifying as I went, since I was using a different hub and cables. The HDMI adapter connected to the Pi, the USB adapter plugged the hub into the Pi, and the male-to-female Micro USB adapter felt way too short...but would probably work.

So far, so good.

I was originally planning to keep the shell on the USB hub, since it seemed to fit as it was, but I decided to open it up to create a little extra air flow. The Pi Zero runs pretty cool, and it won't be handling any demanding games, but it does warm up while you play. This RetroPie will be set up to play the classics, because nostalgia. Those were the best games anyway. Don't judge me.

The USB hub isn't powered, and the Pi Zero doesn't put out a whole lot of extra power, so I scrapped the plan to add a bluetooth dongle. I wanted to keep the Wi-Fi dongle, though, for updates and metadata scraping.

I scored the divider on both halves of the cart, then pushed it to snap it off. It actually broke pretty cleanly. Then I sanded it smooth, mostly to rough up the plastic to give the hot glue a bit more purchase.

The Pi goes right about there.

Then I spent a stupid amount of time just moving stuff around and bending wires to find the best fit. There's really no preparing for this, you just have to figure it out through trial and error. The HDMI cable is NOT very flexible, so that took precedence. I was able to wedge it against the middle screw post to keep it bent.

I eventually got down to figuring out what to layer and how, making sure the USB cable threaded underneath the HDMI adapter cable. The HDMI had to wind over the corner of the USB hub's PCB, so I figured the natural gap underneath would be enough room for the Micro USB adapter cable.

I hot-glued the HDMI, Micro USB adapter, and USB hub in place at the front of the cart. They had to be there no matter what, so I figured with them glued down I'd have a better grasp on how the cables had to run. I built up a small layer of hot glue under the USB hub to raise it up a bit before gluing it in place. The Wi-Fi dongle fit nicely against one of the other mounting posts inside the cart.

That upper left USB port stays unused.

I ended up shaving flat the HDMI adapter and peeling the excess plastic off the USB plug on the USB hub. They were both just too thick, and with everything contained within the NES cart, they wouldn't be exposed to the elements or physical abuse.

I might have shaved a bit too much off the HDMI cable and damaged the shielding; time will tell. I also had to break off the power input on the USB hub to make room for the HDMI cable, and in doing so, I took out what looks like a fuse. The hub still works, though, so I'm going to optimistically assume it was a fuse for the now-missing power port.

The Belkin USB Hub I used had a ridiculously long, metal USB plug under the plastic. It's that entire 2" metal thing in the second photo below. Really, who asked for that?

The winding process.

There! A super-tight fit.

Once the cables were mapped out and mostly in place, I adjusted the Pi to put as little stress on the plugs as possible and marked the mounting holes by digging the end of a push pin into the plastic of the cart. I placed hot glue blobs over the marks, let them dry, then plugged in all the cables, positioned the Pi, and (holding everything so it didn't move) pushed more hot glue through the mounting holes to fix it in place. With just the four points glued down, the Pi would be easier to separate from the cart if needed, and it would have some air flow all around it while it worked.

I wasn't too concerned with only two exposed USB ports, since all functions can be done with two--ROM load and controller or keyboard, or a two-player game. The Wi-Fi dongle was inside, so technically didn't take up any space. It's like a secret bonus functionality, and it's less likely to get lost in there. I put a dot of hot glue behind it so it wouldn't get jarred loose.

Having only two USB ports left a big ol' gap in the front of the cart, though. I wanted this to be a self-contained kit with a dedicated USB drive for transferring ROMs, so I figured I'd hot glue the cap for the USB drive in place as a kind of dock. That way, the USB drive can't get misplaced quite as easily. I left the string attached, clipped off the metal bit, and the string can be tucked inside.

Obligatory note on ROMs: Downloading them is shady at best. They're out there, but play fair. What's nice about the RetroPie is having all of my favorite games in one place, on a system that can plug into my new TV without a UHF adapter. If it's so handy, why am I keeping all my original consoles, carts, and discs? Because nostalgia. Don't judge me. If there's a fire, I'm totally jumping out the window clutching my SNES. The cat can fend for itself.

Built-in USB, storage.

The only thing left was to reassemble the cartridge. I meant to buy a few phillips screws to replace the Nintendo security screws, but never got around to it.

Not too shabby!

The Pi Zero performs really well for anything up through the Sega Genesis/Megadrive era. With two controllers plugged in, the hub works with no power issues. I was able to scrape a bunch of cover art via Wi-Fi with no hiccups.

Kudos to Zach for coming up with an easy-to-follow idea. The Pi Cart is a head-turner and a fun (and portable) way to play with your RetroPie build. I did this one as a Christmas present for a friend of mine, and he was really happy to get it. It sits nicely in his current library of NES cartridges as a sort of stealth option for when he gets tired of blowing on the real carts to get them to play.

It's nostalgia. Don't judge him.

13 December 2016

Fixing a Nintendo Game and Watch: Faded LCD or stained screen

I'm writing about this because I didn't find one place online that explained all this stuff at once.

I bought my wife a few Game and Watch games for Christmas this year, and one of them was sight unseen--the seller didn't have the batteries or urge to test it, but it seemed in good shape.

When I put batteries in it, though, I couldn't see the screen. At first, I thought it was completely dead, but it made sound. When I looked closer, I could make out really faint figures moving on the screens.

This meant the polarized film over the screen was toast. Super easy fix. If you have a Game and Watch with a fading LCD, here's what to do: get something polarized (like sunglasses) and place it over the screen. You might have to rotate it a little, and you should see the screen go black on one of the angles. Rotate another 90 degrees and you should have a normal looking screen with DK Jr. bopping around on it.

Here's the lower screen with the old and new polarized film.

I bought a pack of 10 sheets of polarized film on Amazon. They're a bit thicker than the originals, and as you can see by the photo above, I had to use them diamond-shaped to get the angle right. I figured I had to trim them anyway, so I was fine with that.

The Game and Watch screens have a few elements to them. From the very front layer to the back, you'll have the polarized film, one or two scenery panels (make sure you keep track of which end is up), the actual glass LCD panel, and behind that, a silver plate. More on that plate later.

Open up the game. Be careful, these things are old and the plastic might be brittle. You don't want to snap off a screw post. There are other walkthroughs online for how to disassemble these, but they are super simple, so you can probably figure it out. Do one side at a time. I did the upper screen first, since I didn't want to deal with the buttons. Behind the upper screen is a hefty metal plate to keep everything in place. You have to unscrew that and (gently) lift it off to get at the screen proper.

Here's the new, untrimmed film next to the old, yellowed film.

Use the old film as a template and cut out the shape. It's okay to cut a little big, you can always trim it to fit. Notice the pattern of notches at the corners of the film--it'll help you orient it properly when you reassemble (I think the one in the photo is upside-down).

Button pads like to fall out. Watch out for the metal bits--they disappear quickly.

In the photo above, you can see how everything's laid out. I opened it with the button console down (in 'closed' position). The LCD still has the silver backing behind it, and there's a second scenery panel between the silver backing and the glass LCD. Then, still in the button console, the foreground scene panel is on top of the polarized film.

That polarized film also serves as a sort of screen protector. It's the cheapest, most replaceable part of the screen, so if it gets faded or scratched, it's not a big deal to repair.

Pop out the scenery panel and the old polarized film, and throw your new polarized film in place. Be careful--the polarized film will have a thin layer of protective plastic over one or both sides. Peel off that protective plastic before you install the film in the game.

Then carefully sandwich the game together (I had a devil of a time with this--the layers of plastic kept sliding around, so sometimes a scenery panel stuck out too far, or the polarized film popped out and got in the way. Just be patient, keep everything lined up, and fit the screen and button console together.

Once they're together, hold them that way and take a look at the screen. In mine, the front scenery panel kept sliding up, exposing way too much of the black border. If the panels look pretty centered, screw the game back together.

And now you can see Junior.

Remember the silver plate behind the screens? Not the hefty one keeping the top screen in place, but the little one behind the LCD that makes the screen look silvery. That's also replaceable. If you have a Game and Watch with a circular stain behind the screen that almost looks burnt, that's a good indication that moisture got into the game at one point and now the silver plate is tarnished.

You can buy replacement silver plates for about $4 plus shipping from a guy in Spain who sells Game and Watch repair parts on eBay. I got a few to fix an Oil Panic game.

Here's what the lower screen looked like on the Oil Panic game:

Here's the upper screen--not as bad, but almost as faded as the Donkey King II game:

I swapped out the silver plate on the lower screen, as well as both polarized films. Now it looks like this:

Not too bad! Of course, with the silver plate replaced in the lower screen, the upper screen looks dingy by comparison. I'll have to open it up again and replace that one.

Look closer at the lower screen.

I'm a little peeved at these blotches (nobody's fault, just annoying). This is one of the things you just can't fix: screen bleed. This game isn't bleeding too badly, and if I keep it relatively climate-controlled, it shouldn't get much worse. But knowing I can't fix it is a little galling.

Thankfully, this is a wicked little game, so I never really have time to notice these blotches while I'm actually playing. I'm too busy yelling at the little guy for never being where I need him to be when I have to empty my bucket.

Well, that's that. I hope this writeup was helpful and/or enlightening. These Game and Watch games are really well made, easy to maintain, and a lot of fun to play. If you have a broken one sitting in a drawer, take a closer look. You might be able fix it up with a few bucks and around 30 minutes.
